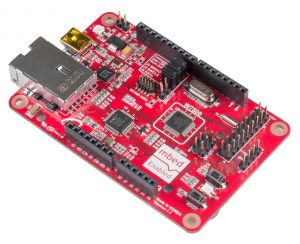

WIZnet WIZwiki Platform based on WIZnet’s MCU. WIZnet WIZwiki-W7500 is a WIZwiki platform board based on W7500. The IOP4IoT W7500 chip is one-chip solution which integrates an ARM Cortex-M0, 128KB Flash and hardwired TCP/IP core for various embedded application platform especially internet of things. If you use WIZwiki-W7500, you will be able to easily develop a prototype. It is compatible with Arduino Shields. This is using the CMSIS-DAP USB and ISP Header easily available firmware writing.


WIZnet W7500

  • ARM Cortex-M0 Core
  • 48MHz, 128KB Flash
  • 16KB RAM
  • 32KB RAM for TCP/IP – Can be extended to system RAM
  • Hardwired TCP/IP Core
  • MII Interface
  • ADC (8)
  • GPIO (53)
  • SWD (Serial Wire Debug)
  • Timer/PWM
  • UART (3)
  • SPI (2)
  • I2C (2)

External Ethernet PHY

  • IC+ IP101GA
  • Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
  • Auto MDI/MDIX function
  • Supports MDC and MDIO to communicate with the MAC


  • LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
  • Drag-n-drop programming
  • USB Serial Port
  • Easy to use C/C++ SDK


  • USB Mini B Type
  • Slim Size RJ45(with transformer)
  • Arduino compatible pin headers
  • SWD Header (1.27mm and 2.54mm)
  • GPIO Header
  • ISP Header


  • 5V USB Power or 5V header supply
  • 2 system SW – RESET SW, BOOT SW
  • Micro SD card slot

WIZwiki-W7500 Blockdiagram

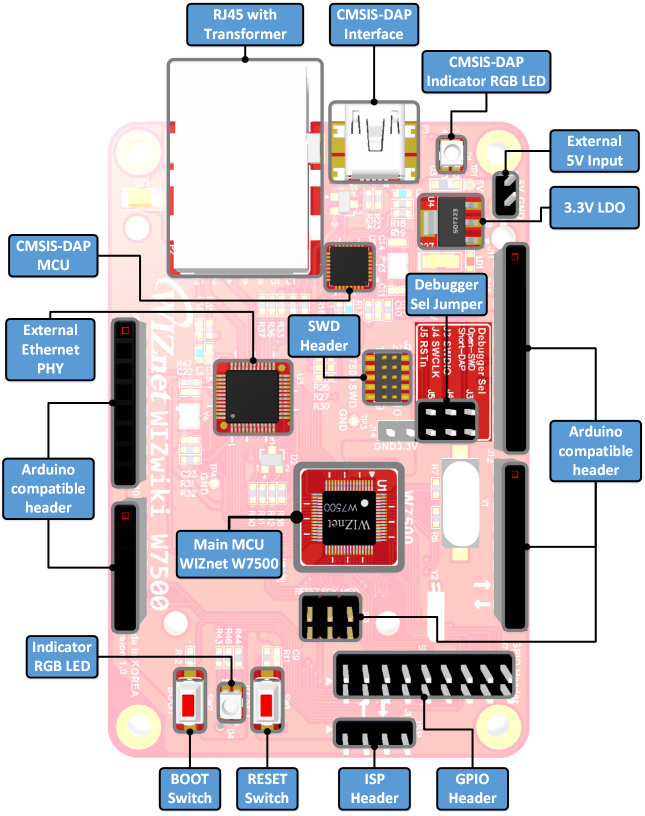

WIZwiki-W7500 Callout

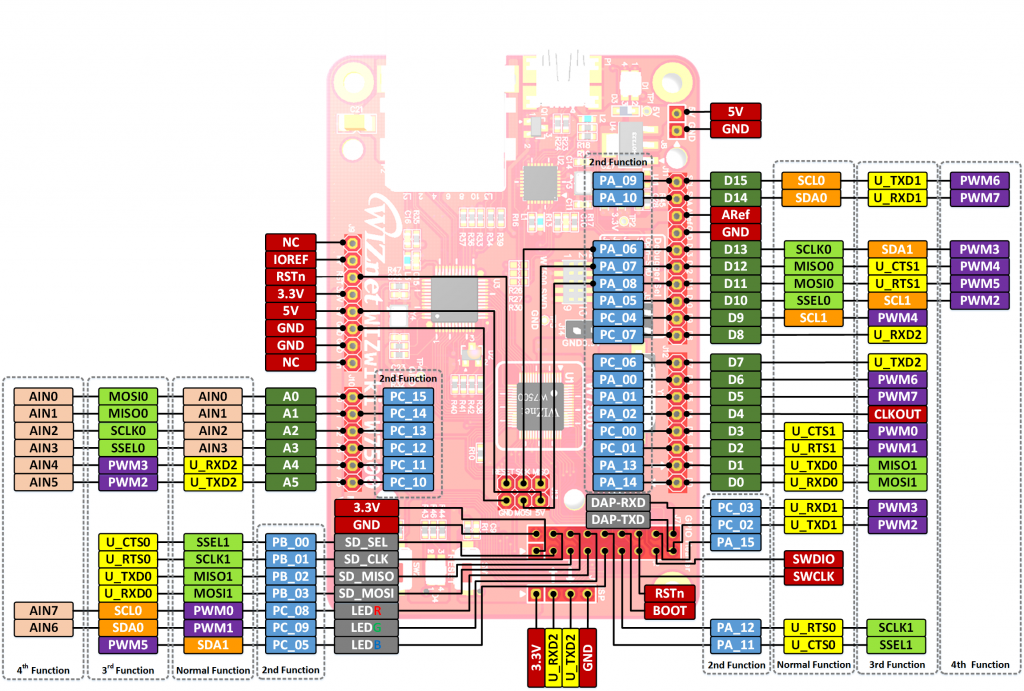

WIZwiki-W7500 Detail Pinout

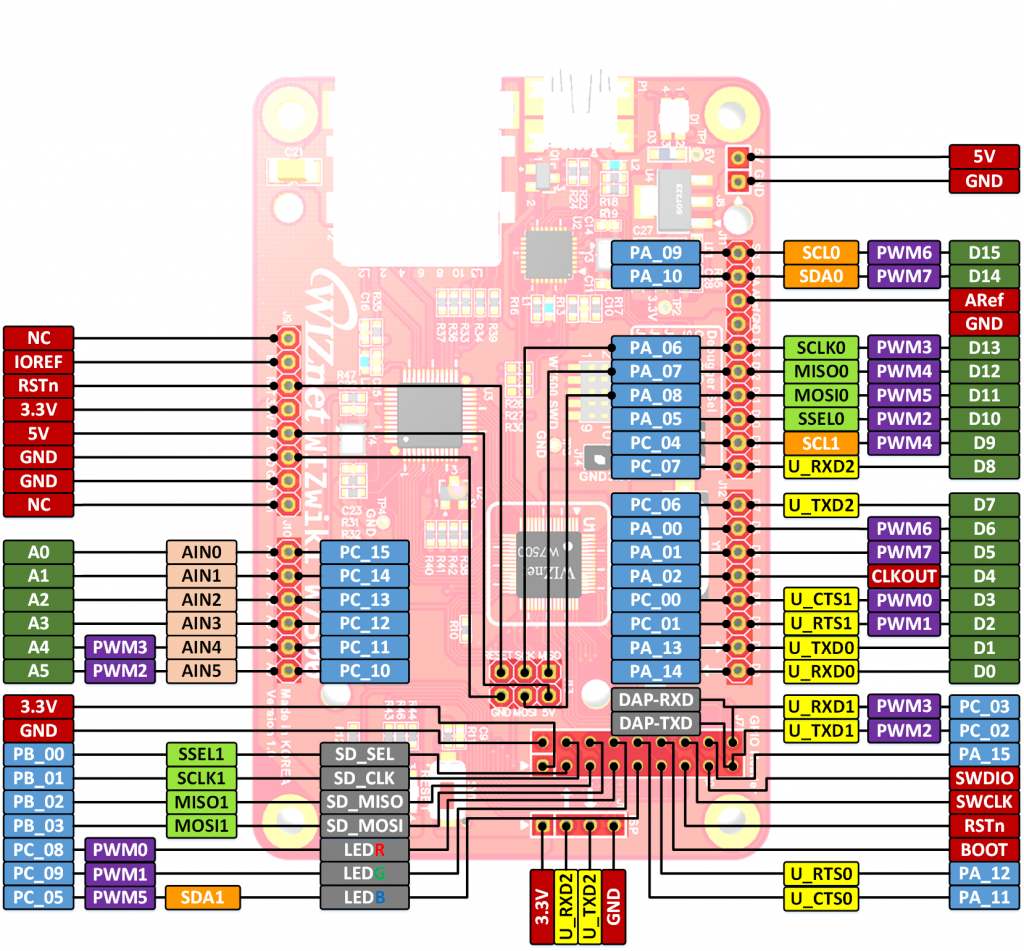

WIZwiki-W7500 Simple Pinout
