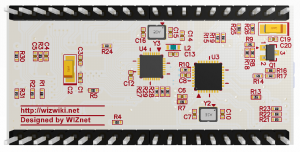

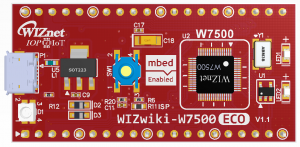

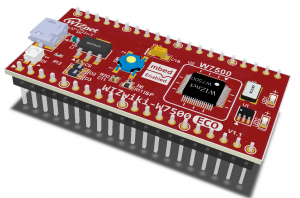

WIZwiki-W7500ECO
WIZwiki Platform
WIZnet WIZwiki-W7500ECO is a WIZwiki platform board based on W7500. The IOP4IoT W7500 chip is one-chip solution which integrates an ARM Cortex-M0, 128KB Flash and hardwired TCP/IP core for various embedded application platform especially internet of things. You can develop prototype product more quickly using WIZwiki-W7500ECO and it includes CMSIS-DAP for debuging and ethernet-phy.
Features
WIZnet W7500
- ARM Cortex-M0 Core
- 48MHz, 128KB Flash
- 16KB RAM
- 32KB RAM for TCP/IP – Can be extended to system RAM
- Hardwired TCP/IP Core
- MII Interface
- ADC (8)
- GPIO (53)
- SWD (Serial Wire Debug)
- Timer/PWM
- UART (3)
- SPI (2)
- I2C (2)
External Ethernet PHY
- IC+ IP101GRI
- Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
- Auto MDI/MDIX function
- Supports MDC and MDIO to communicate with the MAC
CMSIS-DAP
- LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
- Drag-n-drop programming
- USB Serial Port
- Easy to use C/C++ SDK
Connector
- Micro USB
- Slim Size RJ45(with transformer)
- GPIO Header
ETC
- Power source – micro USB or external 5V pin
- 1 RESET SW.
- RGB LED for CMSIS-DAP
- 2 Blue LED for USER
- 2 2.54mm 1×20 Externel connector

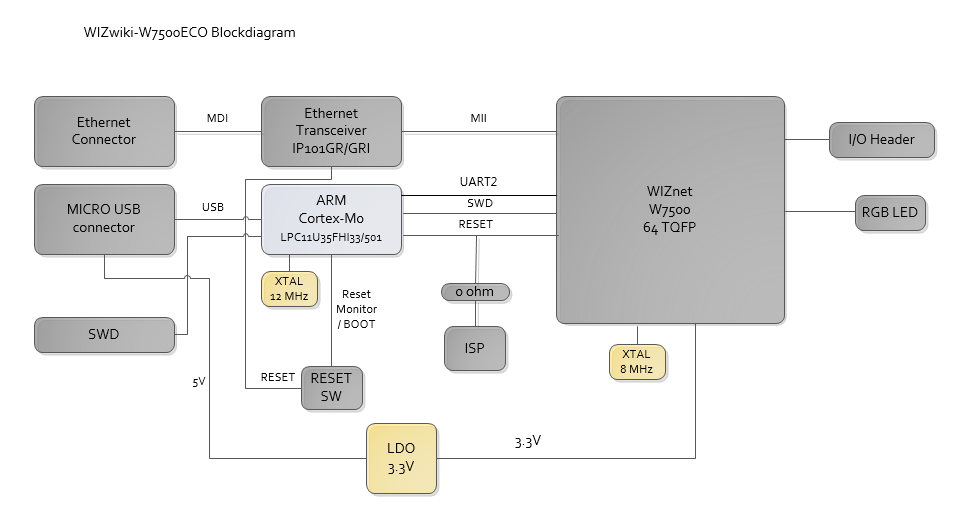

WIZwiki-W7500ECO Blockdiagram

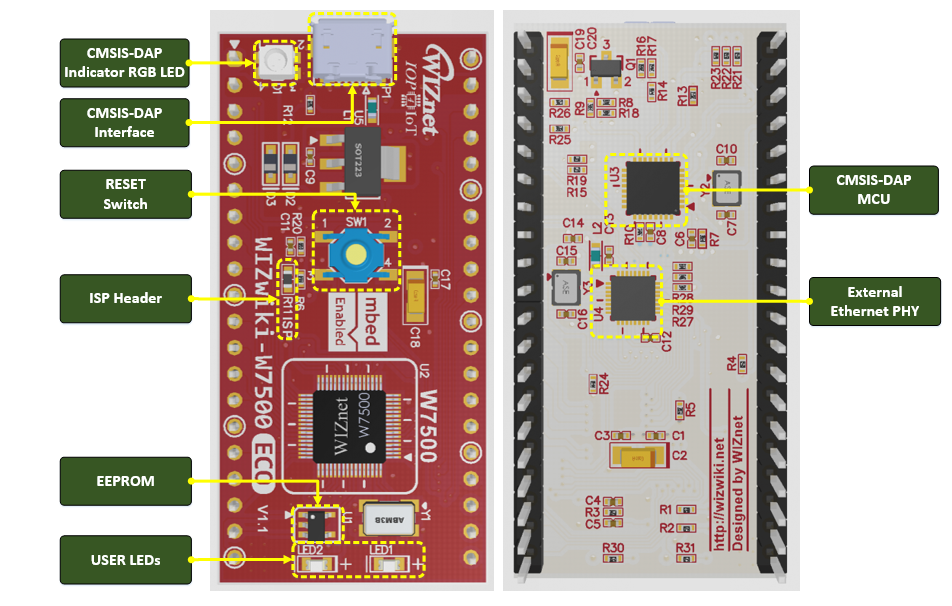

WIZwiki-W7500ECO Callout

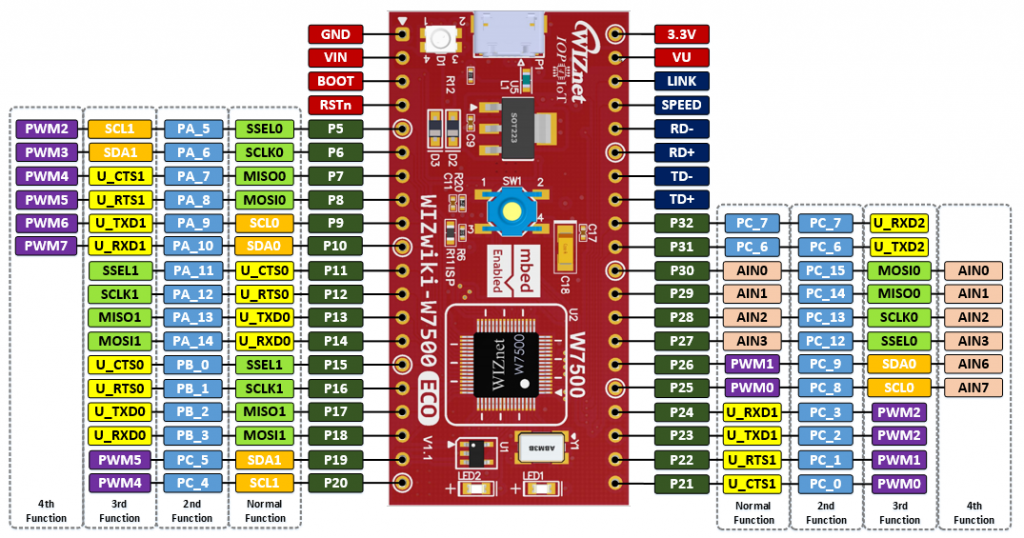

WIZwiki-W7500ECO Detail Pinout

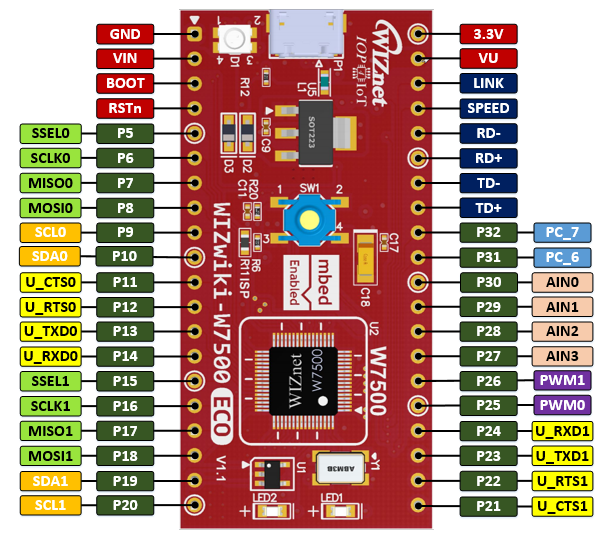

WIZwiki-W7500ECO Simple Pinout
