WIZwiki-W7500P

WIZwiki Platform

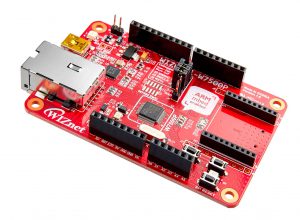

WIZnet WIZwiki Platform based on WIZnet’s MCU. WIZnet WIZwiki-W7500P is a WIZwiki platform board based on W7500P. The IOP4IoT W7500P chip is the one-chip solution which integrates an ARM Cortex-M0, 128KB Flash, hardwired TCP/IP core for various embedded application platform, 10/100 Ethernet MAC and PHY, and especially internet of things. The TCP/IP core is a market-proven hardwired TCP/IP stack and PHY is IC plus IP101G, an IEEE 802.3/802.3u Fast Ethernet Transcevier for 10/100Mbps. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for more than 15 years. W7500P suits users who need Internet connectivity best.

Features

WIZnet W7500P

  • ARM Cortex-M0 Core
  • PHY (IC+(IP101G))
  • 48MHz, 128KB Flash
  • 16KB RAM
  • 32KB RAM for TCP/IP – Can be extended to system RAM
  • Hardwired TCP/IP Core
  • Internal Ethernet PHY
  • MDI Interface
  • ADC (8)
  • GPIO (34)
  • SWD (Serial Wire Debug)
  • Timer/PWM
  • UART (3)
  • SPI (2)
  • I2C (2)
  • 64 LQFP (7×7 mm)

CMSIS-DAP

  • LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
  • Drag-n-drop programming
  • USB Serial Port
  • Easy to use C/C++ SDK

Connector

  • USB Mini B Type
  • Slim Size RJ45(with transformer)
  • Arduino compatible pin headers
  • Xbee Header

ETC

  • 5V USB Power or 5V header supply
  • 2 system SW – RESET SW, BOOT SW
  • 1 User SW
  • RGB LED
  • Micro SD card slot

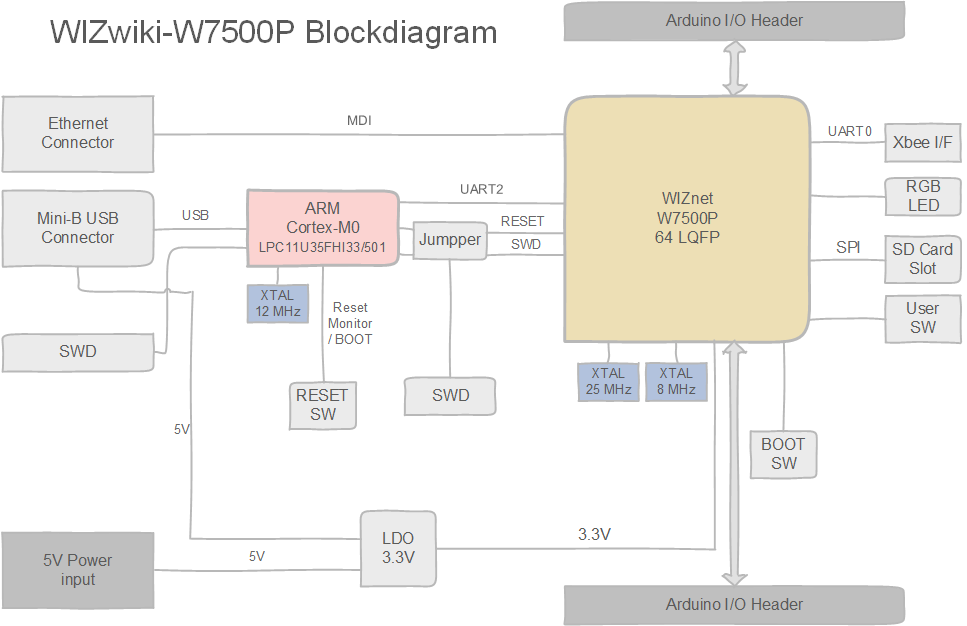

WIZwiki-W7500P Blockdiagram

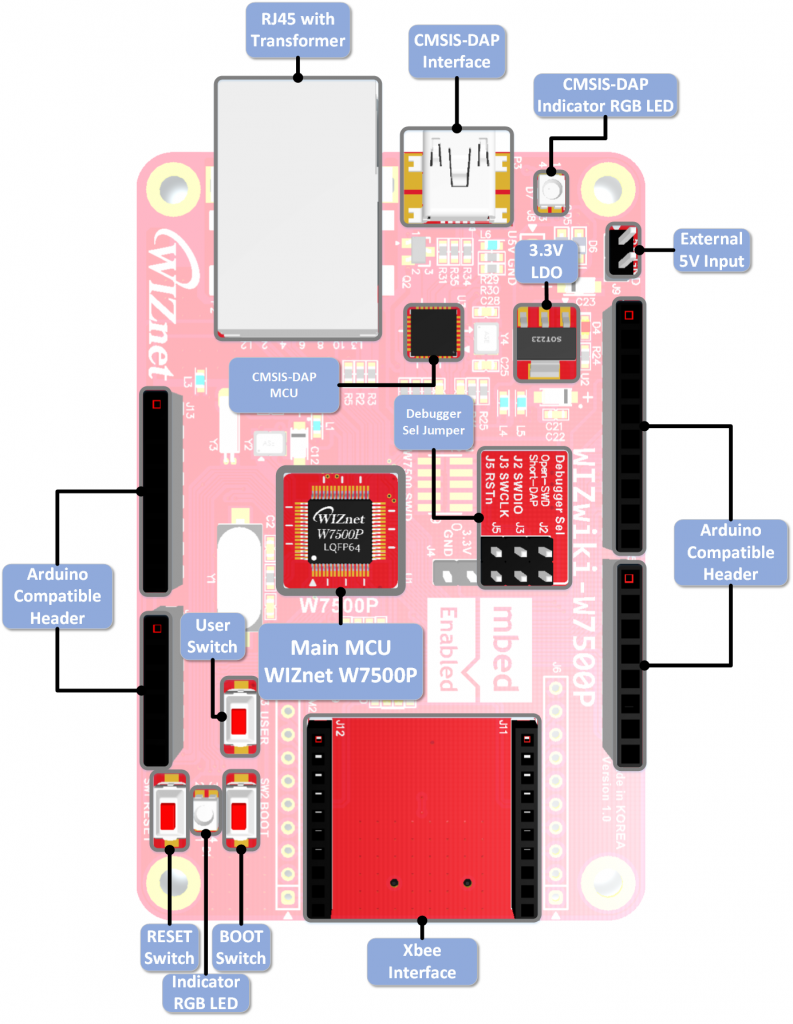

WIZwiki-W7500P Callout

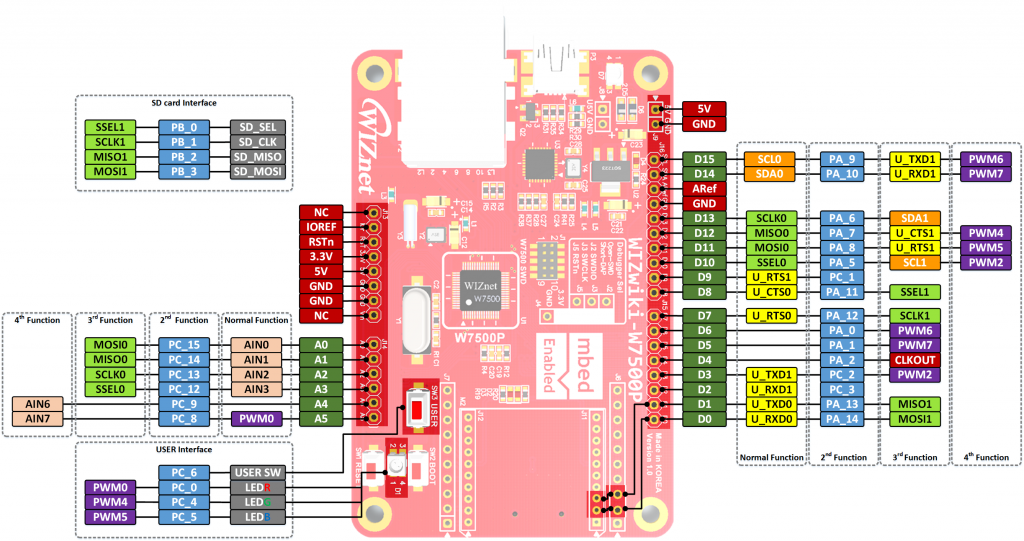

WIZwiki-W7500P Pinout

Firmware

W7500P Library
